The Aurore Setting Design Process

The Aurore is special to me in a lot of ways, but especially because it was designed specifically for a stone that I had loved for a long time, but it’s many issues prevented me from setting it.

By now, I think that if you have taken a look at my designs, you’ve noticed that diamonds are almost always accent stones. That’s not to say that I won’t set a diamond, but I put a lot of special consideration into making jewelry with colored stones.

1

Colored stones have their own potential problems when it comes to producing a setting for them. For instance, colored stones are typically cut with two things in mind: color and size/weight retention, which come with their own host of issues, typically windows (an area that doesn’t reflect light), which is what the Aurore was specifically designed around.

B
Naked sapphire.

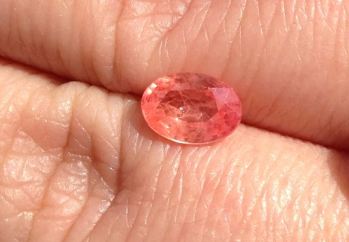

I designed the Aurore setting around a padparadscha sapphire I have had for a while, but could never figure out how to set. The stone has a big window in the middle of it due to insufficient depth. Diamonds don’t typically have that problem, it’s a uniquely colored stone issue. The stone has an amazing color, though, and obviously the best was made of the material by the cutter. It also has some inclusions in it, which give it more of a glow and less of a sparkly bomb.

Peach5

My solutions to the various problems presented in this particular stone was to start from the bottom and work my way up. The Aurore has a lotus design on the bottom, inspired by the very color of the sapphire, giving the basket some decent coverage, which would help close up that window and let the stone shine.

pad3
Early sketch ideas.

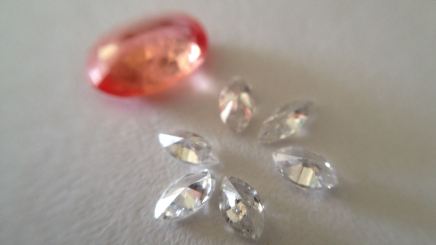

But I didn’t want to just stop there – I had a parcel of marquis diamonds, what if I set those inside the lotus petals on the basket. Then, light hitting the pavilions of the diamonds would potentially reflect light up through the stone!

6
Taken a very long time ago!

I would want the lotus petal design to be seen, and the diamonds would of course need lots of light to have that function properly. So a traditional fully round shank was out. Which meant it was time to think outside the box, and the partly open shank, that isn’t a complete circle. And now, we can see the full view of the lotus and diamonds.

22

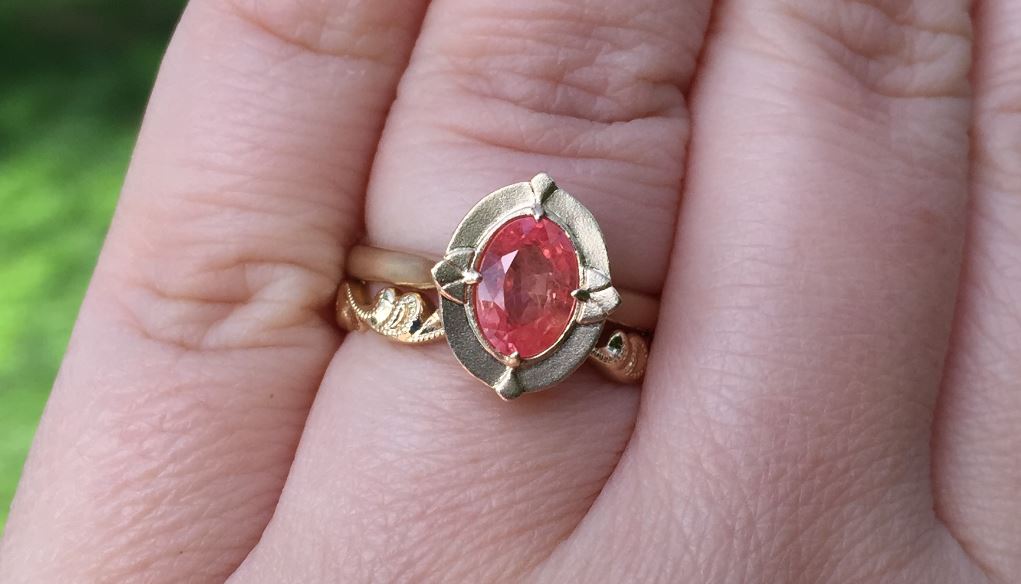

So I then turned my attention to the top of the ring. The stone only measures 5×7, so, I decided that it needed a little bit of help in the size area. Well, since the stone is windowed and not super sparkly, a traditional diamond halo ran the very real risk of outshining the center stone, instead of fully enhancing it. I saw Erika Winters’ Thea halo, and thought, “Hey, why can’t it be all metal? No reason to include diamonds.” And again, taking inspiration from Erika’s Thea halo, and due to the smaller amount of sparkle from the center, decided against high polish, and went with a matte finish.

8

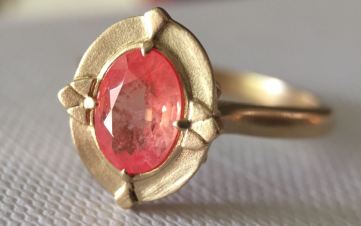

But a plain metal halo would be boring – so since I had become vehemently against putting the sapphire against diamonds, that meant metal detail. I got the inspiration for the shapes from an antique diamond and emerald ring. The shapes are different, but the idea for the layout is similar.

20

All in all, I was so satisfied with the first version of the ring, I decided to go to the opposite side of the color spectrum and do a white metal version.

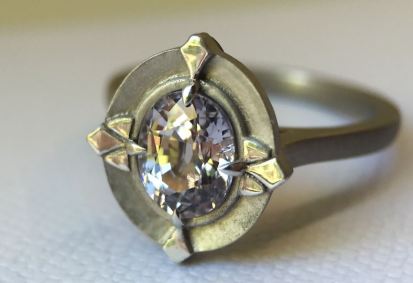

In doing a second prototype, the gray spinel’s window was much smaller, so I decided to forgo the diamonds on the gallery. But instead of keeping the entire thing with a matte finish, I decided to have my bench put a high polish on the metal halo’s details. Which really lends a beautiful effect and mimics the sparkle of the silvery spinel even more wonderfully than I could have imagined.

13

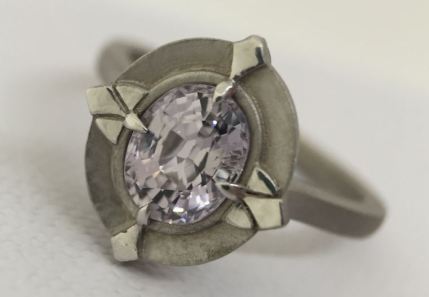

Keeping the white gold with a matte finish was a bit of a gamble, because I wasn’t sure what kind of effect it would have due to it’s gray color, but looking back, it wasn’t something I should have worried about – as a whole, the silvery gray spinel appears even more sparkly surrounded by the contrast of the matte and high polished metal.

14

All in all, the Aurore is a setting I’m proud of. There is something very fulfilling about creating something to solve problems, no matter how small, and further enhancing the beauty of what is already there.

The Aurore is available for order directly through me, or through David Klass in Los Angeles.
